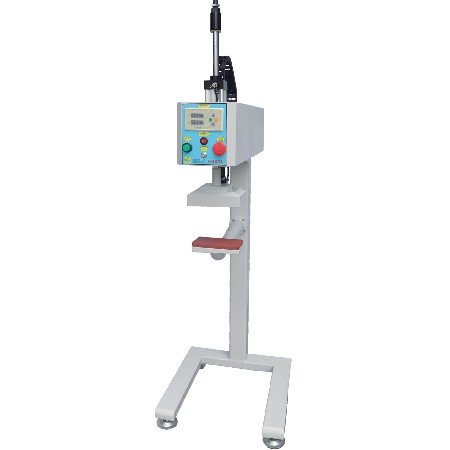

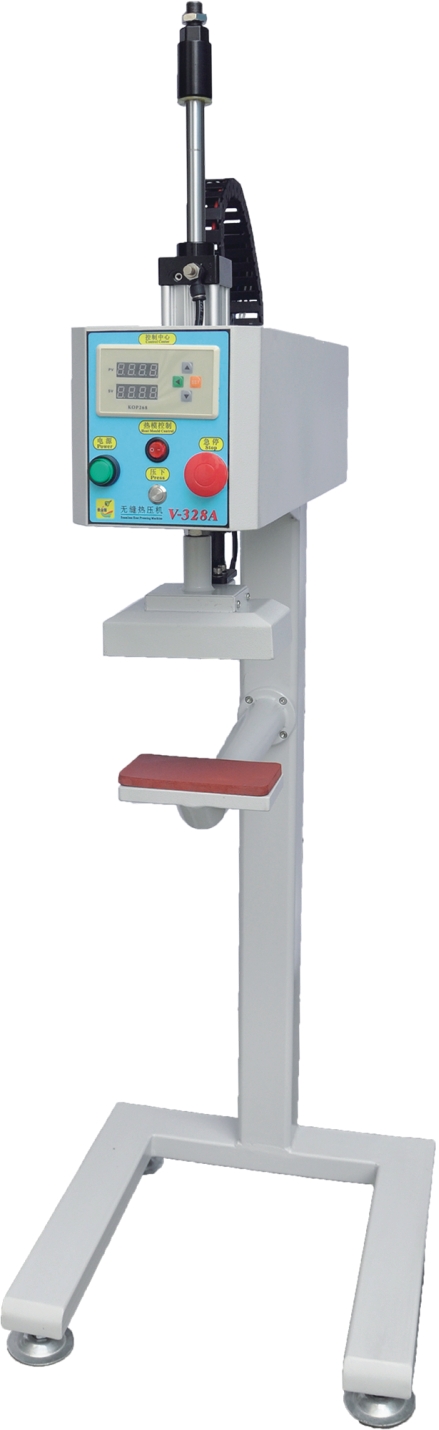

Seamless heat press V-328A
2020-11-24 421
產品參數/Product parameters
型號 | Model | V-328A |
電壓 | Voltage | AC220V 50/60Hz |
額定功率 | Rating Efficiency | 1KW |
壓縮空氣 | Air Supply | 0.35-0.5MPa |
最高加熱溫度 | Maximum Temperature | 250℃ |
加壓時間 | Pressing Time | 1-99s |
熱壓板面積 | Pressing Area | 160mm×90mm |
升降行程 | Up and Down Travel | 150mm |
外型尺寸 | Exterior size | 720mm×660mm×1545mm |
凈重 | Net weight | 52kg |
V-328A性能參數
1) . 電壓：AC ～220 V 50 Hz
2) . 額定功率：1000W
3) . 氣壓：0.35～0.5 MPa
4) . 粘合溫度：常溫～250 ℃
5) . 加壓時間：1～99秒可調
6) . 工作面積：160mm×90mm（平面）
7) . 升降行程：150mm
8) . 外觀尺寸：720mm（L）×660mm（W）×1545mm（H）
9) . 機身重量52 kg
當產品圖片和產品參數與實際產品不一致時，以實際產品為準，對此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
