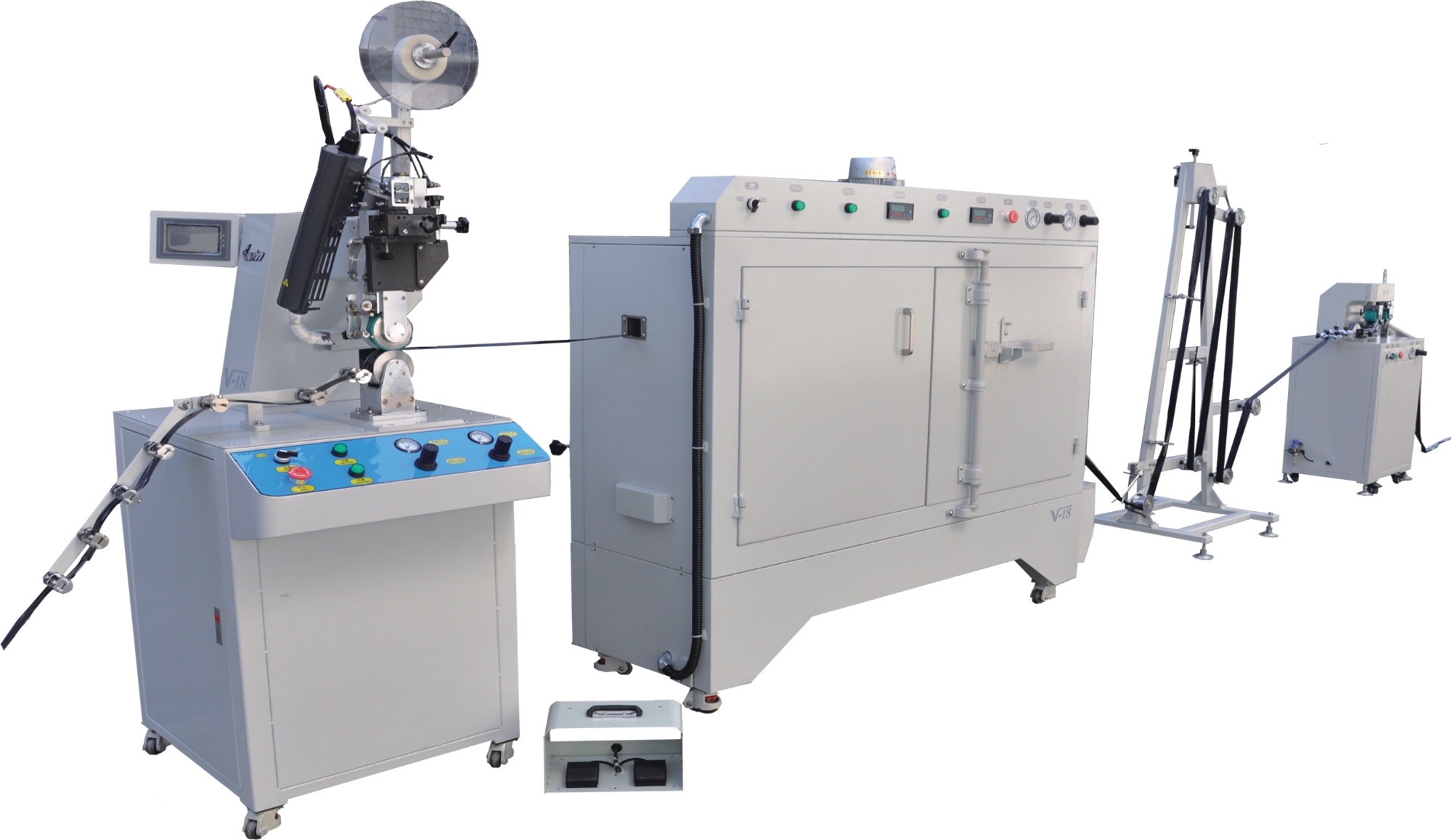

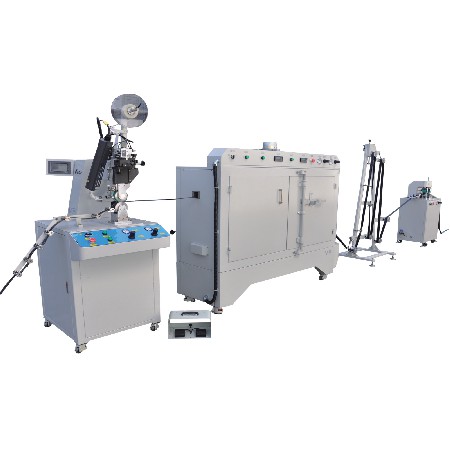

Waterproof zipper film laminating machine V-18
2020-11-24 401
產品參數/Product parameters
型號 | Model | V-18 |
電壓 | Voltage | AC220V50/60Hz |
額定功率 | Rating Efficiency | 4.5KW |
壓縮空氣 | Air Supply | 0.3-0.5MPa |
熱合速度 | Heat Sealing Speed | 1-10m/min |
風嘴最高溫度 | Maximum Temperature of Nozzle | 750℃ |
上下壓輪寬度 | Pinch roller Width | ?90×40mm |
外型尺寸 | Exterior size | 主機 750mm×980mm×1700mm 烘箱 1900mm×700mm×1600mm 定型架 910mm×600mm×1700mm 分口機 1250mm×500mm×1250mm |
凈重 | Net weight | 1250kg |
V-18性能參數
1. 額定功率4500W。
2. 單相額定電壓：AC～220V 50/60 Hz，
3. 發熱管最高溫度≤700℃。
4. 本機總氣壓：0.35～0.5MPa 。
5. 上壓力為0.01～0.5MPa可調 。
6. 速度：1～10 m/min。
7. 外形尺寸：主機（2950×1150 ×1900）mm。
8. 外形尺寸：副機（2750×600 ×1550）mm。
9. 熱合寬度：25mm（根據工藝設定風口寬度）。
10．凈重：1250kg
當產品圖片和產品參數與實際產品不一致時，以實際產品為準，對此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
