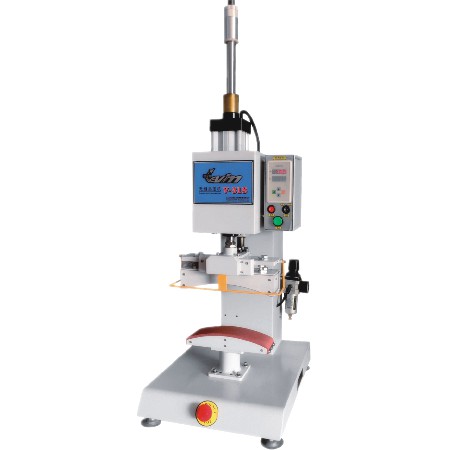

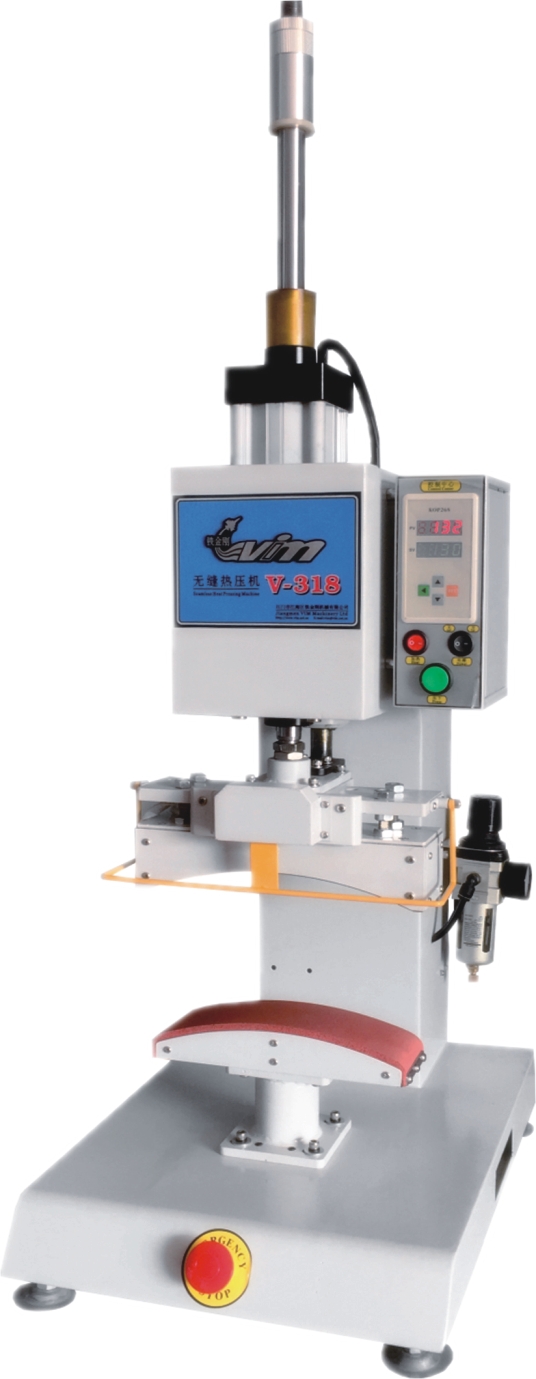

????????? V-318 (arc mold)
2020-11-24 382
V-318(弧模)特點：
·高清單片機界面，簡單易懂。
·可選擇手動或腳踏控制模式。
·雙工位下模板，效率高。
·可靠的安全防護設計。
·可選擇手動或腳踏控制模式。
產品參數/Product parameters
型號 | Mode | V-318(弧模) (Curve Module) |
電壓 | Voltage | AC220V 50/60Hz |
額定功率 | Rating Efficiency | 750W |
壓縮空氣 | Air Supply | 0.35-0.5MPa |
加熱溫度 | Maximum Temperature | 180℃ |
加壓時間 | Pressing time | 1-99s |
熱壓板面積 | Pressing Area | 250mm×70mm×35mm |
升降行程 | Up and Down Travel | 165mm |
外型尺寸 | Exterior size | (L) (W) (H) 550mm×450mm×1200mm |
凈重 | Net weight | 65kg |
當產品圖片和產品參數與實際產品不一致時，以實際產品為準，對此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
