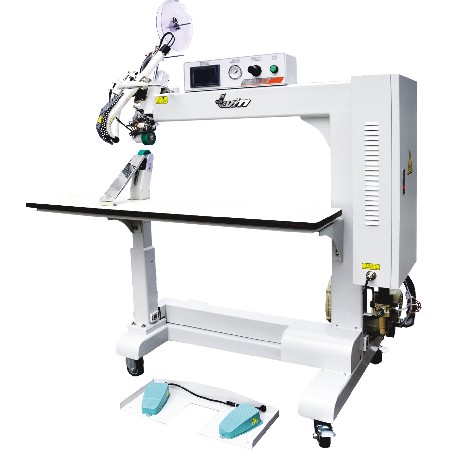

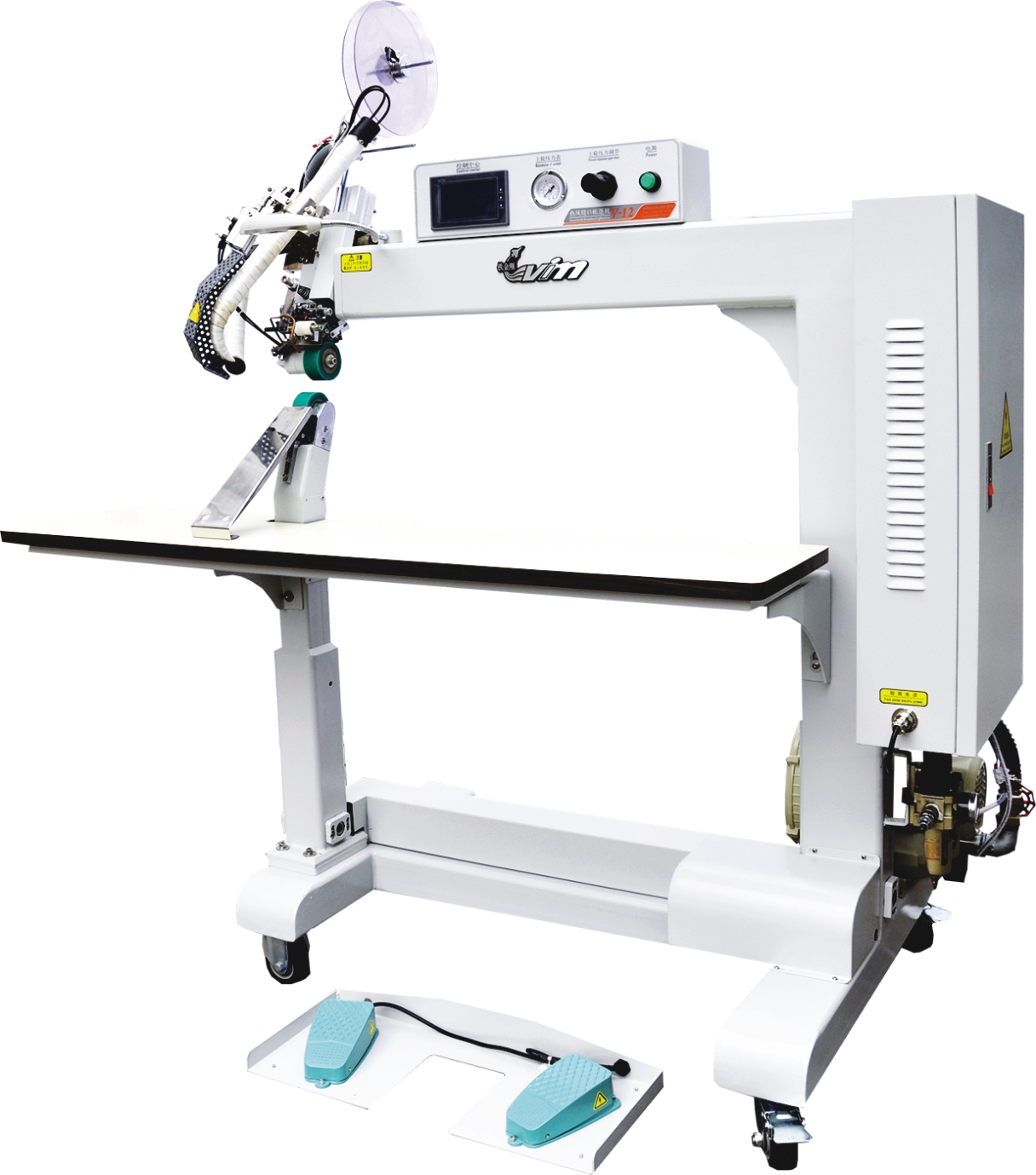

Hot air seam tent machine V-12
2020-11-24 526
產品參數/Product parameters
型號 | Model | V-12(差速）(Speed Differential) |
電壓 | Voltage | AC220V50/60Hz |
額定功率 | Rating Efficiency | 3KW |
壓縮空氣 | Air Supply | 0.35-0.5MPa |
熱合速度 | Heat Sealing Speed | 1-25m/min |
風嘴最高溫度 | Maximum Temperature of Nozzle | 700℃ |
上下壓輪寬度 | Pinch roller Width | ?65×30mm |
外型尺寸 | Exterior size | 1500mm×800mm×1600mm |
凈重 | Net weight | 150kg |
可選滾輪 | Optional Size of Roller | 8-30mm |
V-12性能參數
1. 額定功率3000W，根據發熱溫度而定。
2. 額定電壓：AC～220V 額定頻率50/60 Hz
3. 發熱管最高溫度≤700℃
4. 本機總氣壓：0.35～0.5MPa
5. 上柱壓輪壓力為0.01～0.5MPa可調
6. 速度：1～25 m/min
7. 外形尺寸：（1500× 800 × 1600）mm
8. 電機功率：90 W
9. 壓輪寬度：30 mm（1英寸）
10. 壓輪直徑：65 mm
11. 熱風槍嘴寬度：27 mm
12. 噪音：小于80 dbA
當產品圖片和產品參數與實際產品不一致時，以實際產品為準，對此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
