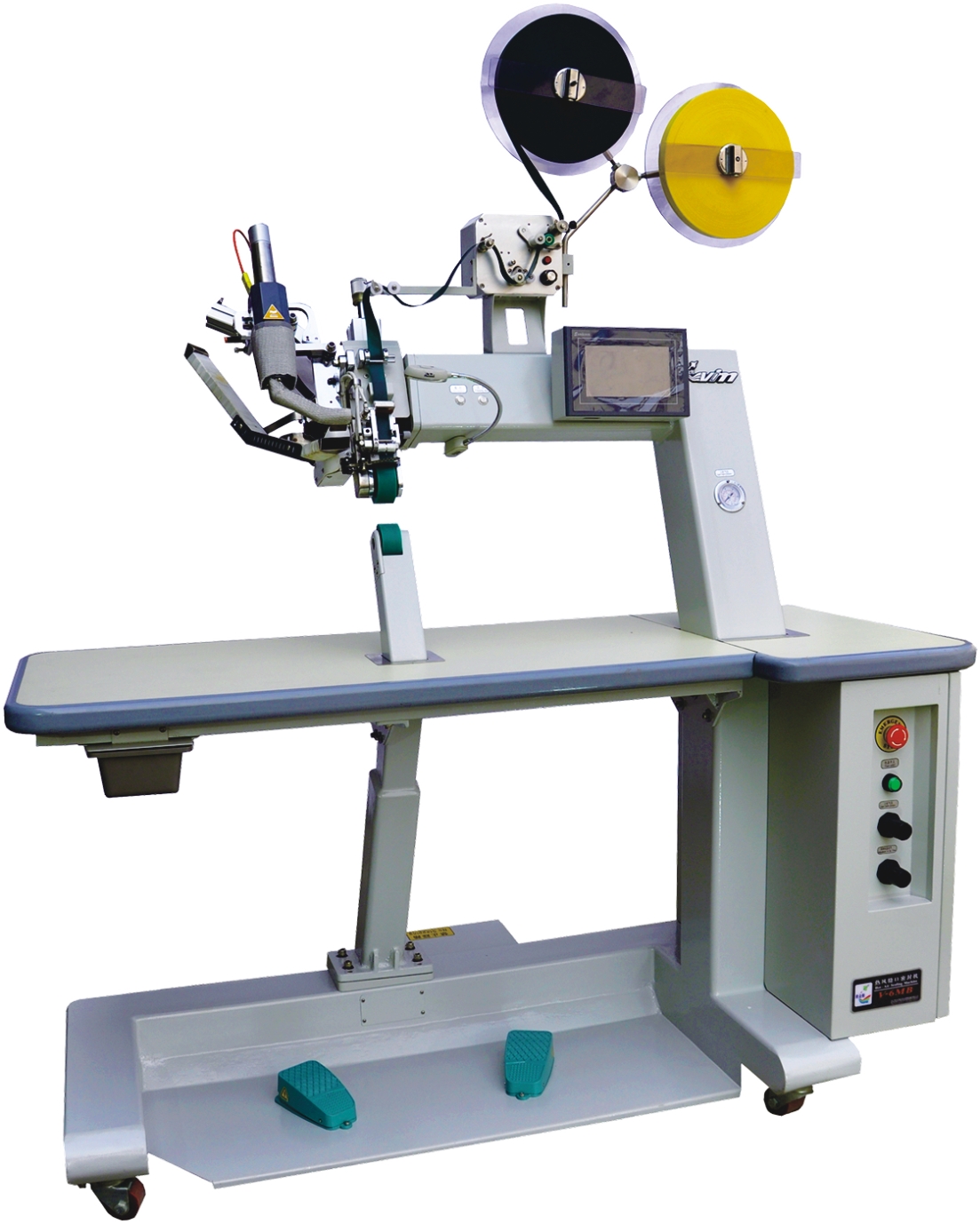

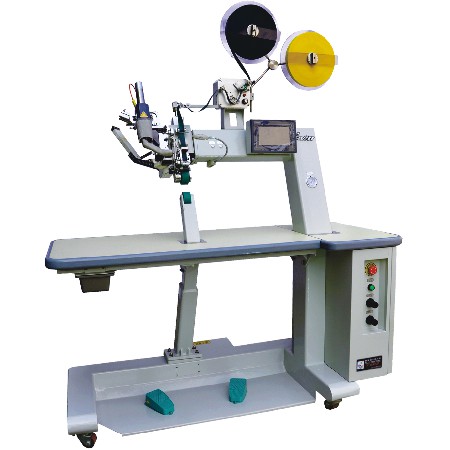

Hot air seam sealing machine V-6MB
2020-11-24 530
產品參數/Product parameters
型號 | Model | V-6MB(差速）(Speed Differential) |
電壓 | Voltage | AC220V50/60Hz |
額定功率 | Rating Efficiency | 3.3KW |
壓縮空氣 | Air Supply | 0.35-0.5MPa |
熱合速度 | Heat Sealing Speed | 1-25m/min |
風嘴最高溫度 | Maximum Temperature of Nozzle | 700℃ |
上下壓輪寬度 | Pinch roller Width | ?65×25mm |
外型尺寸 | Exterior size | 1530mm×640mm×1700mm |
凈重 | Net weight | 160kg |
可選滾輪 | Optional Size of Roller | 8-32mm |
V-6MB性能參數
A. 電壓：AC 220V 50～60Hz
B.額定功率：3300W特殊發熱絲。
C. 熱力控制：無段可調常溫0～700℃
D. 壓縮空氣：0.35~0.5兆帕
E. 速度：1～25m/min無段變速（標準），2～25m/min，選擇訂購使用。
F. 槍嘴氣壓：無段可調0.03～0.3MPa（氣壓表顯示）。
G. 槍嘴寬度：標準扁口型23mm，
H. 上壓輪壓力：無段可調節器0～1MPa（氣壓表顯示）。
I. 上下輪寬度：光面25mm標準型，其它如鋼輪、直紋等可自由選擇訂購。
J. 可吹膠帶寬度：標準型14mm～22mm，其它寬度可根據客戶要求訂做。
K. 上壓輪行程距離：18～25mm
當產品圖片和產品參數與實際產品不一致時，以實際產品為準，對此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
